1209C , 3212T, 3230T, 3231T – 375lbs System

1209C – Heavy Duty Carbon Tube

• Specifications: 30 mm diameter, 305 mm length

• Material: Carbon

• Product Weight: 79 g

• Weight Limit: 170 kg / 375 lbs

• Warranty: 2 years

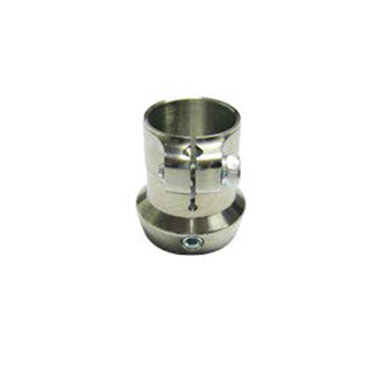

3212T – Heavy Duty Tube Clamp

• Description: 30 mm tube clamp adapter designed for optimum strength while maintaining low weight. Manufactured with a forged and machined combination for strength and durability.

• Material: Titanium

• Product Weight: 128 g

• Weight Limit: 170 kg / 375 lbs

• Warranty: 2 years

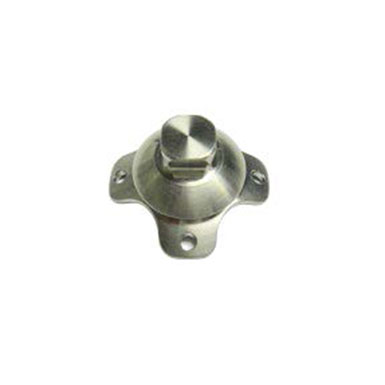

3230T – Heavy Duty 4-ear Connector, Pyramid

• Description: Provides the option for one-step lamination into a transtibial socket. Manufactured with a forged and machined combination for strength and reduced weight.

• Material: Titanium

• Product Weight: 83 g

• Weight Limit: 170 kg / 375 lbs

• Warranty: 2 years

3231T – Heavy Duty SACH Foot Adapter

• Description: Features a shorter flange for improved strength while reducing weight. A foot bolt is included with each adapter. Manufactured with a forged and machined combination.

• Material: Titanium

• Product Weight: 1117 g

• Weight Limit: 170 kg / 375 lbs

• Warranty: 2 years

Technical Data

Torque Values
